Glass Fins & Mullions – Spider Glass

GLASSCON is probably one of the most qualified PREMIUM facade engineering companies! Glasscon's  SPIDER GLASS CURTAIN WALL SYSTEMS or point fixed glazing systems and spider glass walls, established our leadership and changed the way of thinking in constructions such as "HIGH TECH" glass curtain walls, canopies, atriums etc. Point fixed glazing systems and spider glass walls offer great transparency and unique designing solutions.Regarding the FULL STRUCTURAL GLASS WALLS or SPIDER GLASS WALLS WITH GLASS FINS, these are glass walls that are made almost 100% out of structural glass fins and glass beams. (like the worldwide APPLE STORES ) . The SPIDER GLASS WALLS WITH GLASS FINS are supposed to be the most transparent 'light' structures, almost invisible to the eye, because they don't have any steel or concrete substructure and they are completely FRAMELESS! The substructure is completely made from SAFETY GLASS (mostly tempered laminated glass beams, connected via stainless steel INOX joints) and silicon gaskets. However, the FULL STRUCTURAL GLASS WALLS or SPIDER GLASS WALLS WITH GLASS FINS are completely airtight and waterproof.FULL STRUCTURAL GLASS WALLS or SPIDER GLASS WALLS WITH GLASS FINS (FULL STRUCTURAL GLASS, type APPLE STORES)

• GLASSCON fully designs and delivers all static glass calculations for the glass thickness and type required, according to the European (EUROCODE 1 and DIN 18008-1, 18008-2, 18008-3  ) and American standards (ANSI) with Finite Element Analysis (FEM) and all the stainless steel connection accessories  (visit Structural Calculations)

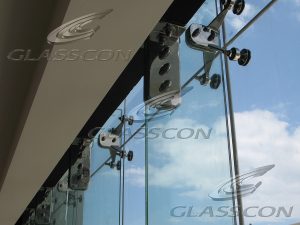

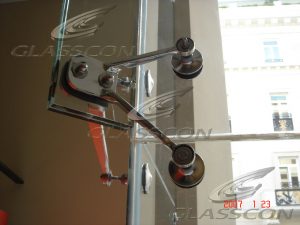

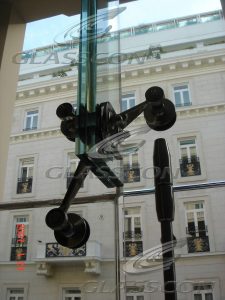

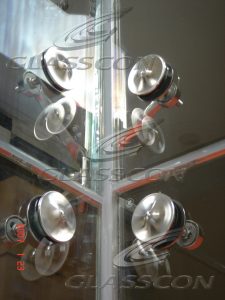

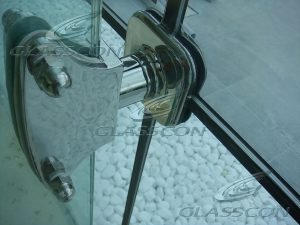

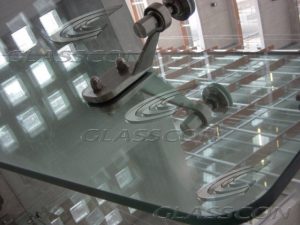

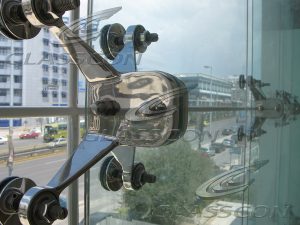

• Use of STAINLESS STEEL JOINTS, SPIDERS and ROUTELS and all accessories and fittings needed. The SPIDER FIITINGS are from stainless steel casting 304, 316, 316Lm or V4.A Grades and MIRROR POLISHED for best protection against oxidation/corrosion.
• Possible use of any kind of glass that is needed for the application like: silk,-screen printed glass, digital printed glass, tempered laminated, enamelled silk printed glass, curved/bent glass, special solar glass, bullet proof glass in any color and design (visit Fritted Glass - Screen Printed & Digital Printed Glass)
• For night visibility and attractiveness of the structural glass facade, GLASSCON can also implement special LED'S SPOT LIGHTS or MEDIA WALL FACADE into any GLASS WALL.
• Visit following indicative projects to have a closer look!

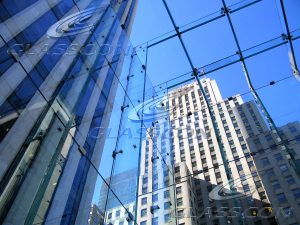

  • Worldwide APPLE STORES
  • Stone Cladding & 15m Ballistic Glass Mullions/Fins

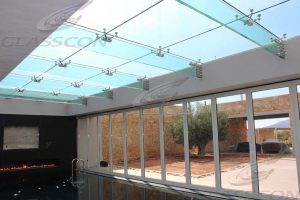

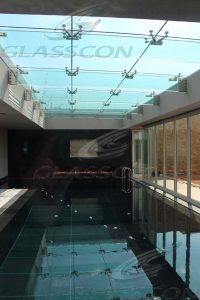

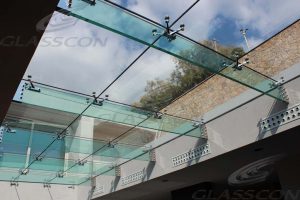

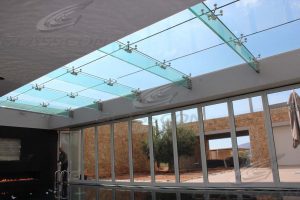

  • Pool Skylight with Suspended Structural Glass Beams
  • Architectural Facade with Stainless Steel & Glass Fins
  • Low Iron Extra Clear Spider Glass Fins Curtain Wall

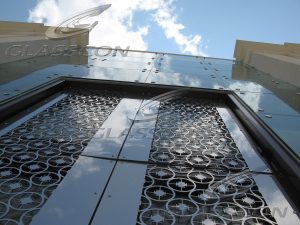

  • Building Envelope with Glazed Solar Louvers & Inox Mesh

(OPTIONAL) additional use of DOUBLE GLAZING UNITS for higher THERMAL isolation & SOUNDPROOFING for the GLASS CURTAIN WALLS

• In the above GLASS CURTAIN WALL system, DOUBLE GLAZING UNITS can be used, in order to achieve higher THERMAL performances and SOUND PROOFING
• Thermal insulation  U-K-Value up to 0,5 W/m2K
• Soundproofing glass up to 54 dB
• GLASSCON offers also SILK SCREEN PRINTED GLASS and DIGITAL PRINTED GLASS in any design, picture or color. Glasscons silk printed or digital printed glass is an enamelled, heat-soak tested, thermally toughened safety glass in accordance with EN 14179-1. The characteristics of glasscon SILK SCREEN PRINTED GLASS & DIGITAL PRINTED GLASS: a lot of variety of colours and designs, light- and weather resistant, resistant to temperature change and easy maintenance for use in facades and in interior.

(OPTIONAL) additional SOLAR SHADING SYSTEMS & SUN SHADING LOUVERS for the GLASS CURTAIN WALLS

• GLASSCON can provide any solar shading system with all the necessary electrical sensors, accessories, software etc.
• Shading with EXTERNAL SOLAR SHADING LOUVERS ( GLASS LOUVERS, HPL-WOOD LOUVERS, PV-LOUVERS, ALUMINIUM PERFORATED LOUVERS , HONEYCOMB ZINC COPPER LOUVERS )
• small solar shading systems ( like EXTERNAL VENETIAN BLINDS, VERTICAL FACADE AWNINGS, etc.)
• External solar folding and sliding shutters

(OPTIONAL) additional OPERABLE GLASS LOUVRE WINDOWS (motorized) - VENTILATION & SMOKE GLASS LOUVRE WINDOW - for the GLASS CURTAIN WALLSMotorized GLASS LOUVRED WINDOWS/VENTILATORS that perfectly matches to the glass curtain wall and provides

• natural ventilation
• smoke control
• heat exchange
• air circulation.

GLASSCON is accredited for its Products & Services by TÜV NORD ISO 9001:2015 and “ift ROSENHEIM” in Germany.GLASSCON: The only ONE – STOP - SHOP for premium Architectural Building Envelopes & Glazing Solutions.For more information, become a member of our growing global community and download free brochures anytime and anywhere!GLASSCON reserves the right to change or modify any of the above data, specifications, characteristics, terms etc at any time and in its sole discretion without further notice.
